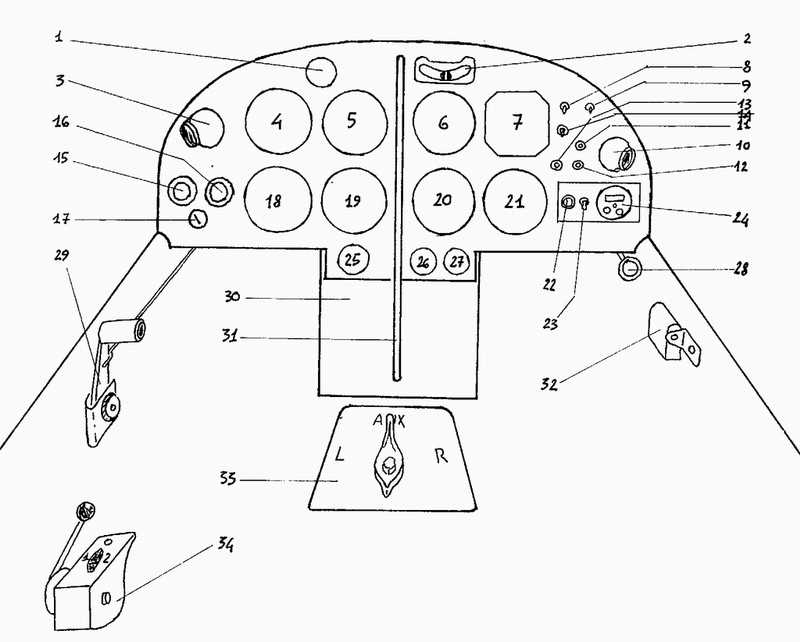

The Silver Chicken - Cockpit Layout

1. Mag Compass
2. Turn Coordinator
3. Left Cabin Air Inlet
4. Airspeed Indicator
5. Altimeter
6. Vertical Speed Indicator
7. Glove Bay
8. Panel Lights Switch
9. Map Light Switch
10. Right Cabin Air Inlet
11. AUX Power Socket and Strobe Lights Breaker
12. Artificial Horizon Breaker
13. COM Radio Breaker
14. Strobe Lights Switch
15. Mixture Control Lever
16. Propeller Pitch Lever
17. Magnetos Switch with Starter
18. Engine RPM Indicator
19. MAP/Fuel Flow Indicator
20. Engine Oil's Temperature and Pressure Indicator
21. Digital Voltmeter
22. AUX Power Socket
23. MASTER Switch
24. COM Radio
25. EGT Indicator
26. G-Meter
27. Cylinder head Temperature Indicator
28. Parking Brake Handle
29. Power Lever
30. Main Fuel Tank (42l)
31. Main Fuel Tank's level Indicator (transparent plastic tube)
32. Map Lights
33. Auxiluary Fuel Tanks Selector
34. Hand Fuel Pump with Main Fuel Selector
Cockpit Layout
